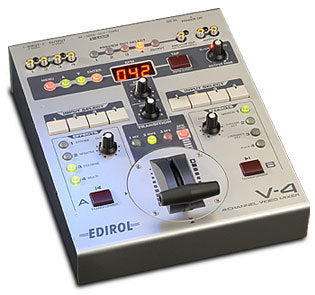

The V-4 is a 4-channel Video Mixer made for portable or fixed installation use. It is ideal for use in nightclubs, places of worship, theatres, and other live performances. The compact design of the V-4 gives you the freedom to make your video sources come alive.

For cutting-edge Multimedia artists, the V-4 offers V-LINK, an exciting new feature from Edirol and Roland that provides for realtime performance control over digital video, for the ultimate in creative expression. V-LINK allows the user to trigger clips, perform video effects and transitions in real-time when connected with the Edirol PR-80 (sold separately). The V-4 video mixer also has MIDI in/out/through, for real-time or sequenced control of video sources with effects and transitions.

Main Features

• Video Mixer / Switcher with 4ch input
• Independent 2-channel TBC / Frame Synchronizer
• Independent 2-channel Digital Effects
• Professional quality T-Bar Video Fader
• Easy Operation
• Beat Synchronization between Audio and Video
• Over 200 Transition Effects

Video Mixer / Switcher with 4-ch input
V-4 is equipped with four composite (RCA Pin) inputs plus two S-video (Y/C) inputs. V-4 offers scene transition of the four video sources with Dissolve, Wipes (with a total of about 200 variations), and Switching. The V-4 outputs the same video source to all the three jacks (Composite x 2, S-video x 1), for simultaneous monitoring and displaying, without resorting to external distribution boxes.
Over 200 Transition Effects

Professional Video Quality
The input video sources are processed completely in the digital domain, and give professional video quality (13.5MHz, 8-bit, 4:2:2, DV quality). Ideal for use on large screens, and because the V-4 internal processing is digital there is no quality loss.

Independent 2-channel TBC / Frame Synchronizer
The input sources go through independent 2-channel TBC (Time Base Correction) circuits to correct the time code, independent 2-channel Frame Synchronizers are also applied to the two sources at this stage. These processes enable smooth transitions and Dissolves, and ensuring stable images all the time.

Independent 2-channel Digital Effects
V-4 features independent 2-channel Video effects that include a rich selection of digital effects (refer to spec sheet). The V-4 also features composition effects such as Picture-in-Picture, Chroma-key, and Luminance-key. The effects are recallable by a single button press.

Professional-use T-Bar Video Fader
Professional-use T-Bar cross fades for quick and intuitive operation. A V-4 innovation is that you chose to attach the fade however you like, either, vertically as standard for video mixer, or horizontally as a DJ mixer fader. The fader resolution has over 100 steps and offers extremely smooth transitions. Its metal body as well as its fader is strong and durable to be used in your active performance.

Easy Operation
V-4 is designed for its functions and operations to be clear from the front panel. Because it is simple to use its easy-to-use operation will enhance your realtime performance. Most of the V-4 functions can be selected and controlled without resorting to the manual.

On Screen Menu

Preview Function and On-Screen Menu
The preview function is controlled by the source selection button, and enables the user to monitor each of the input sources 1-4 or the output source before transition, to a single preview monitor, no more multiple preview monitors! You can control V-4’s major functions (Ex. Effect selection, MIDI input setting, etc.) from the dedicated preview screen using the convenient On-Screen Menu. This is separate from the output to the main outs, so you can view it anytime you want.

Convenient User Memory Function
V-4’s User memory function allows you to memorize and conveniently recall the panel settings, such as effect assignment to each button. The memory is saved even while the power is off, so you can store the frequently-used setting. Maximum eight configurations.

Back Panel

Synchronization between Audio and Video/Connection with MIDI Equipment
The V-4 features video transition/effects that can be synchronized with MIDI. The BPM (beat per minute) of transition/effects can be made to follow the beat of a music track by hitting the tap button (TAP function). The functions of V-4 can also be controlled via MIDI equipment such as a MIDI keyboard controller.

Liven up the look of your V-4 with a package of three different faceplate skins
Faceplate Option 1-A Faceplate Option 1-B Faceplate Option 1-C Faceplate Option 2 Faceplate Option 2 Faceplate Option 2

Main Specifications
Video Format NTSC or PAL (ITU601)
Video Sampling Rate 13.5MHz, 4:2:2(Y:B-Y:R-Y), 8-bit, Flame synchronizer x 2
Video Input S-Video: 4-pin mini DIN type
Video (composite): RCA pin type x 4 (inputs 1-4; however if S-Video is simultaneously input to 1/2, S-Video takes priority)
Video Output S-Video: 4-pin mini DIN type x 1
Video (composite): RCA pin type x 2
Output level and Impedance S-Video: 1Vp-p, 75ohm
Video (composite): 1Vp-p, 75ohm
Chrominance signal: 0.286mVp-p, 75ohm
Transition Effects Mix, Wipe (4 types), Picture-in-Picture (4 types)
Compositing Effects Superimpose (remove black)
Control MIDI (in, out), V-LINK
Power Supply Dedicated AC Adaptor
Current Consumption 1500mA
Size and Weight
Width 282 mm 11-1/8 inches
Depth 209 mm 8-1/4 inches
Height 77 mm 3-1/16 inches
Weight 1.8 kg 4 lbs. *The specifications are subject to change without notice.
