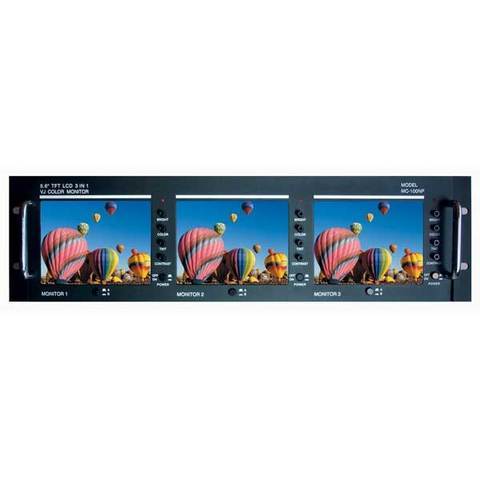

M-Connection MC-100NP Video Monitor
$ 0.00 USD
- Vendor: M-Connection
- Type: MC-100NP Video Monitor
THIS DISPLAY WILL KILL THE NUMARK VM03.
25% Larger Screen Area
In the same space that our competitors offer a 5” screen, the MC-100NP offers a 5.6” screen. It may not seem like a lot, but you can definitely see the difference. These screens are class-A glass, made by Sharp™, so you know that you are getting a great LCD panel.
Controls for Each Screen
All video sources are not created equal so you need to have some controls. Each screen has its own contrast, brightness, color and tint control as well as source switch so that you can use each screen to view two sources.
Rugged
We know what happens to equipment that has to be moved often. It gets damaged! The high quality screens are mounted in solid, steel chassis—not plastic. It is designed to be rack mounted (it can be tilted while in the rack) or, using the optional stand, brought up above your other equipment for better viewing.
FEATURES
- SIX COMPOSITE INPUTS
- LARGE 5.6” SCREEN
- SEPARATE ADJUSTMENT CONTROLS FOR EACH SCREEN
SPECIFICATIONS
DISPLAY
- DISPLAY TYPE TFT LCD x 3 SCREENS
- LCD RESOLUTION 960 (W) X 234 (H)
- LCD SCREEN SIZE 5.6” (DIAGONAL) x 3 SCREENS
- LCD ACTIVE AREA (MM) 113.3 (W) x 84.7 (H)
- LCD DOT PITCH 0.118 (W) x 0.362 (H)
- COLOR SYSTEM NTSC/PAL AUTO DETECTION
- USER CONTROL BRIGHT, COLOR, TINT, CONTRAST (PER SCREEN)
INPUT
- INPUT TYPE VIDEO INPUT X 2 (PER SCREEN)
- INPUT JACK TYPE RCA PIN PLUG
- INPUT VIDEO LEVEL 1VPP AT 75 OHM
POWER
- INPUT VOLTAGE 12V DC, 2A MAX
- AC POWER 110-220v SINGLE POWER SUPPLY
MISCELLANEOUS
- RACK DIMENSION 3U HIGH, 19” EIA RACK STANDARD
- ACCESSORY RCA TO BNC ADAPTER
- OPTION TILT, HEIGHT ADJUSTABLE STAND
