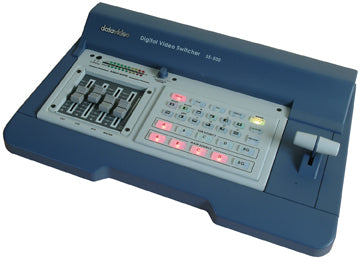

DATA VIDEO SE-500
$ 500.00 USD
- Vendor: DATA VIDEO
- Type: DATA VIDEO SE-500
SPECIFICATIONS
Built-in Four Channel Frame Synchronizer (TBCs) –
No genlock required.
Video Bandwidth S (Y/C) 5.0MHz Composite 4.5MHz
Audio Bandwidth 20 to 20KHz +/- 3dB
Signal/Noise Ratio: Video 50dB Audio 65dB
DG Amplitude tolerance < +/- 3%DP (Phase tolerance) < 3°
Audio THD < 0.1%
SE-500 Unit Dimensions
Width: 15.7 inches/400 mm
Depth: 9.8 inches/250 mm
Height: 3.2 inches/80 mm
Net Weight: 4.40 lbs/2.0 Kgs Power Supply: 110/220V
Input: 100-240V, 50-60HZ, 0.7A
Output: +12V
1.5A
Model#: GPST-1200170

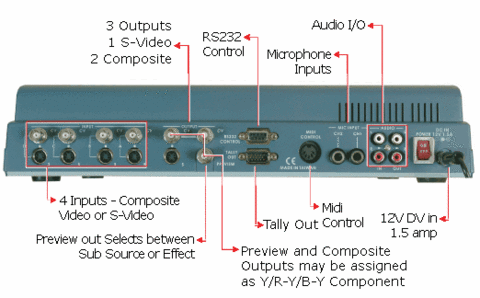

VIDEO IN
4 COMPOSITE OR S-VIDEO
VIDEO OUT
2 COMPOSITE AND 1 S-VIDEO
VIDEO MONITOR OUT
1 QUAD PREVIEW
VIDEO OUT OPTION
THE TWO COMPOSITE VIDEO OUTPUTS AND THE MONITOR OUT MAY BE REASSIGNED AS A COMPONENT (Y/R-Y/B-Y) OUTPUT
VIDEO TALLY OUT
DB15 CONNECTOR (see Instruction Manual)
RS232 CONTROL
DB9 CONNECTOR
AUDIO IN
2 LINE LEVEL, UNBALANCED, 2 MICROPHONE 1/4”
AUDIO OUT
2 LINE LEVEL, UNBALANCED
FEATURES
Preview Control
Selectable sub-source monitoring or effect preview
8 different background colors See colors (link)
SE-500 Effects Wipe Patterns
A/B Roll, A/B Dissolve, Quad, Freeze, Split with borders.
Small PIP: 243(W) x 162(H)
Large PIP: 288(W) x 194(H)
Audio Mixer
Ergonomic T-Bar
Headphone Jack
RS232 Protocol
MIDI Control (see Instruction Manual)
